Overview

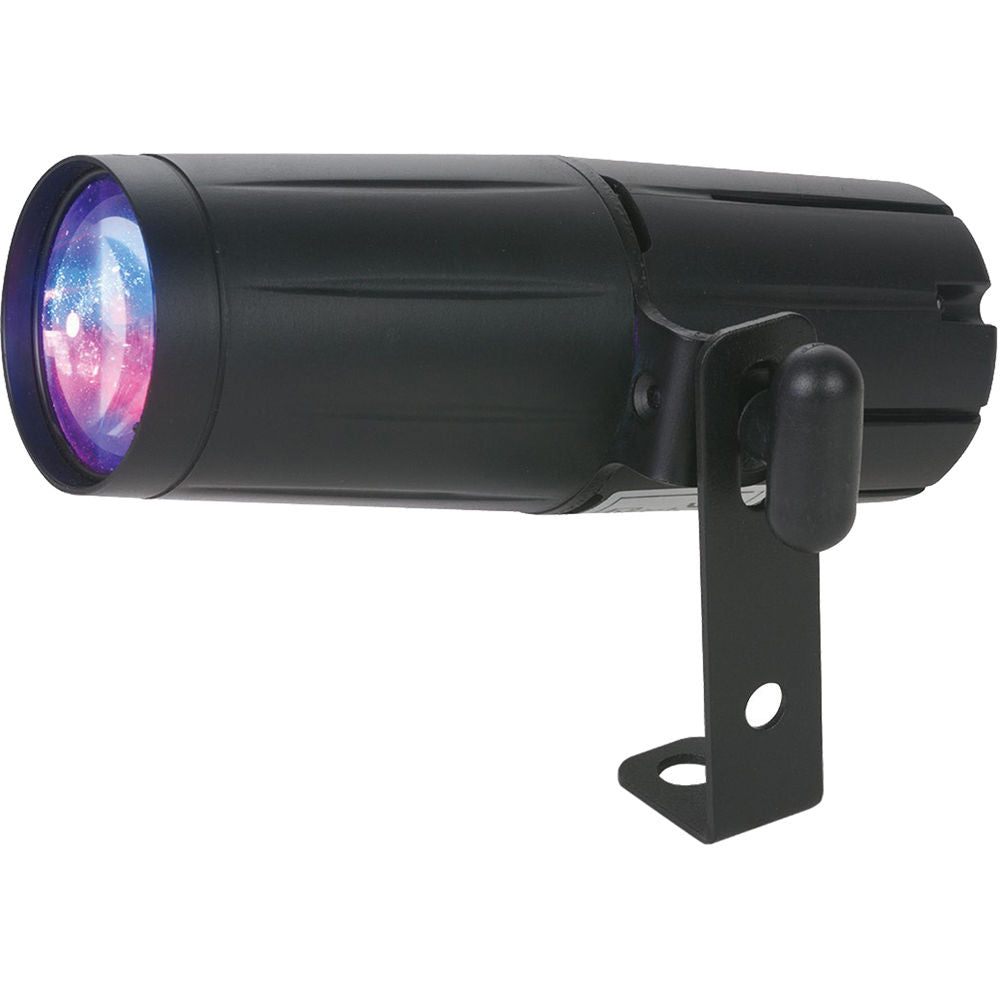

The Pinspot LED Quad DMX from American DJis a full-featured 8W Quad Color (4-in-1) fixture with red, green, blue and white diodes on a single LED that produces a sharp 15 degree beam angle, allowing you to isolate small areas of a set or stage.

While it can be used an a decorative fixture in architectural applications or restaurants to spot tables, it's at entertainment venues that you realize the light's full worth.The Pinspot has DMX Controlled, Sound Active, IR Remote and Auto Run program modes for control and performance features. The unit's 6-Channel DMX modes allow adjustment and control of the light remotely via a console while dimming and strobing can also be handled by the included IR Remote. The Pinspot LED Quad has a multi-voltage power supply for worldwide use.

Features

• Quad Color: RGBW
• 6-Channel DMX, Flicker-free
• 15° Beam Angle
• Includes IR Remote Control
• Built-in Programs, Dimming, Strobe
• Sound Activation Mode

Specifications

• 8W Quad (4-in-1) RGBW LED Pinspot (Rated at approximately 10,000 hours)
• Operational Modes: DMX Controlled/ Sound Active/ IR Remote / Auto Run Programs
• Beam Angle: 15-degrees
• Lumens: 740 @ 1M at 15 degrees
• DMX Channel: 6 Channel
• DMX Connections: 3-Pin DMX In / Out
• Dimming: Adjustable via IR remote
• Shutter / Strobe: Adjustable via IR Remote
• Flicker free
• ADJ UC IR wireless remote included
• Power Consumption: 11W Max
• Input Voltage: AC 100V-240V 50/60Hz
• Dimensions: 8" x 4" x 2.75" / 205 x 98 x 61 mm
• Weight: 1 lbs / 0.4 kg

What's In The Box?

• American DJ Pinspot LED Quad DMX
• Limited 2-Year Warranty
