Overview

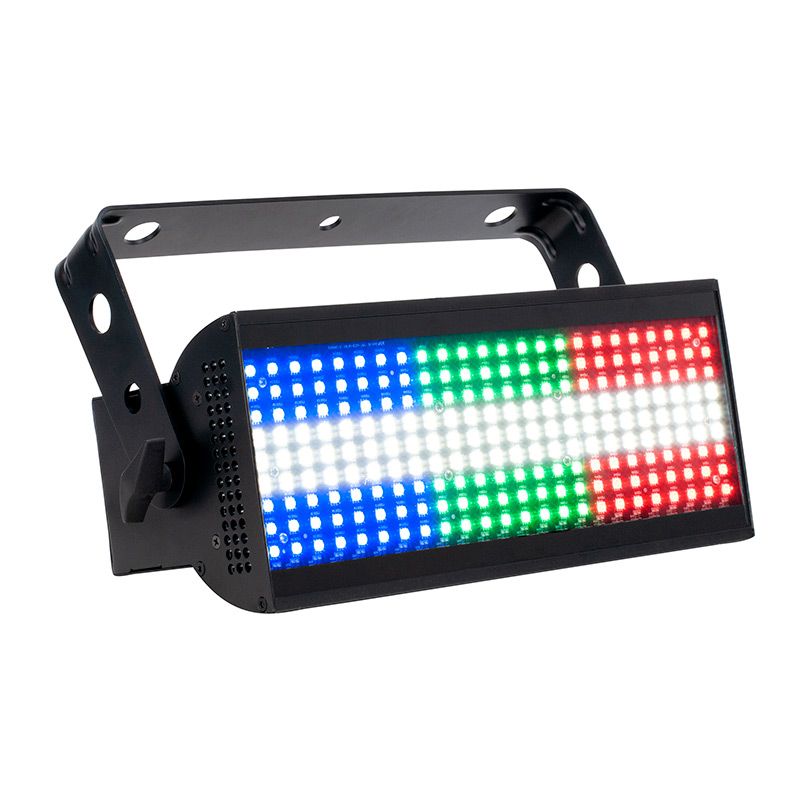

The Jolt 300 features a central strip of 144 x 0.5W white SMD LEDs, surrounded on both ides by 144 x 0.5W RGB SMD LEDs. This provides lighting designers with the creative potential of generating both strikingly bright white strobe effects and vibrant color washes from the same compact fixture. The Jolt 300 is an extremely versatile fixture ideal for concert tours, one-off event production and permanent nightclub installation.

Features

• 3 Section RGB Control
• 64 built-in Color Macros
• 32 built-in program

Specifications

Control

• Control Protocol: DMX
• 6 DMX Modes: 4, 6, 10, 10a, 12, 15, 18, and 18a
• Dim Modes: 6 Presets (Standard, Stage, TV, Architectural, Theatre & Stage 2)
• Dim Speed Control (0.1 - 10 seconds)
• 0-100% Dimming
• Strobe, shutter, & pulse control
• Adjustable LED Refresh Rates (900-25kHz)
• Adjustable Gamma Settings (1.0-2.8)
• With Wired Digital Communication Network
• Display: LCD display with 4-button touch menu
• Compatible with ADJ's UC IR wireless remote

Connections

• Data: 30pin & 5-pin DMX In/Out
• Twist locking power In/Out to daisy chain power
• Scissor Yoke
• Omega bracket attachment
• Safety bolt
• USB port to update firmware
• Twist locking power in/out connections on rear to daisy chain power (up to 4 fixtures @ 120V)

Electrical

• 100-240V
• 50Hz/60Hz (Auto Sensing)
• Max Power Consumption: 226W

What's in the Box?

• (1) Jolt 300 LED Strip Light
• (1) Omega Bracket
• (1) Power Locking Cable
