Overview

The ADJ Focus Spot 2X i a 1000W LED Moving Head with a 3W UV LED included for black lighting or additional color hues. It feature two prism effects; a 6-facet circular prism and a 6-facet linear prism. In addition, ADJ has fitted with FS2X with a GOBO wheel with replaceable, rotating and indexable GOBOs. The GOBOs are easy to replace by removing the top housing with one screw that's on a hinge. GOBOs easily lock in and out of the GOBO wheel. This mover is also equipped with motorized focus, Gobo Indexing, EZ Gobo replacement and a manual zoom knob near the lens to change the beam angle from 16 - 19 degrees.

The Focus Spot 2X is extremely versatile and has everything clubs, theaters, churches, concert productions and lighting professionals are looking for in a LED spot moving head. It has 16 & 18 DMX channel modes, Pan/Tilt Inversion, 16-Bit Fine Pan/Tilt, 3-pin DMX In/Out, locking In/Out power connectors, and a 4-button DMX LCD menu.

The Focus Spot 2X is fitted with 8 colors plus spot and split colors, It has 6 rotating, replaceable GOBO patterns plus spot. The color wheel and GOBO wheel work independent of each other. Al GOBOs are indexable.

Features

• Motorized Focus
• Manual Zoom knob on head: 16 - 19 degrees beam angle
• Fan cooled
• Strobe/Pulse effect; random strobe slow to fast
• UC IR & Airstream IR Compatible (Sold Separately)

Specifications

Light Source

• 1 x 100W Cold White LED (7600 degrees K, 50,000 hr.)

• 8 Colors + White & Split Colors

GOBO Wheel

• 6 Rotating, replaceable Gobos + Spot
• Gobo Size: Outer: 23 mm/Inner: 19mm/Thickness: 0.5mm
• GOBO Indexing
• EZ GOBO replacement with hinged head cover
• GOBO Shake Effect

Prism Wheel

• 6-facet circular prism
• 6-facet linear prism

Control

• 3 Operational Modes: Sound Active, Show Mode, & DMX Controlled
• Primary/Secondary
• 4 Built-In Lighting Shows
• 16 & 18 DMX Channel Modes
• Electronic Dimming: 0% - 100%
• 5 Dimmer Curves
• 4-Button DMX LED menu
• Stepper motors with micro stepping
• With Wired Digital Communication Network

Connections

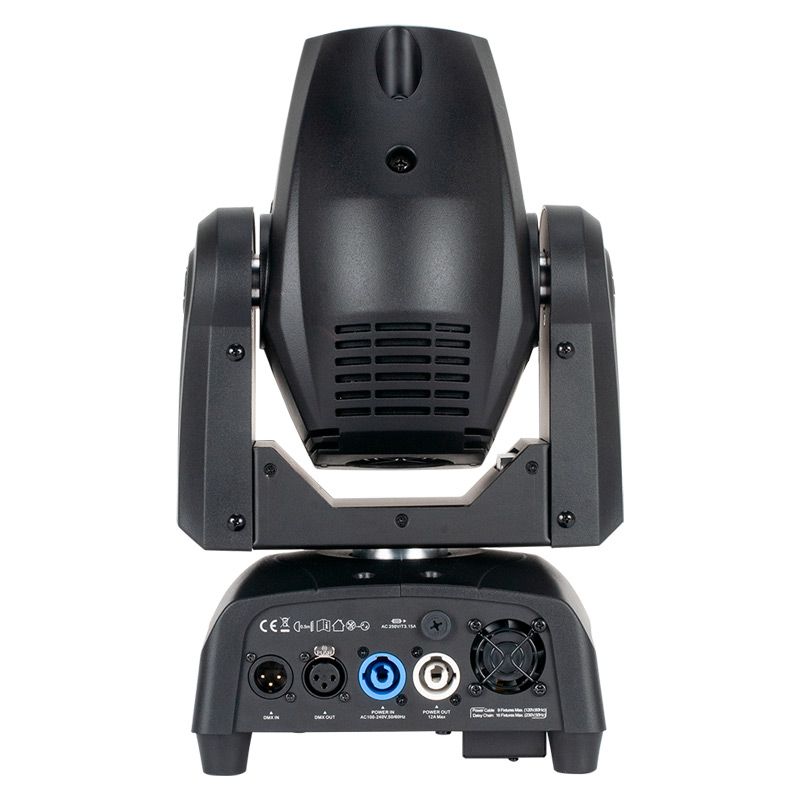

• 3-pin DMX In/Out
• Twist locking power In/Out connections on rear to daisy chain power (up to 9 Focus Spot 2X's @ 120V and 16 Focus Spot 2x's @ 230V)

Pan/Tilt

• Fast and precise Pan/Tilt Movements
• 16-Bit Fine Pan/Tilt control
• Pan: 540-degree
• Tilt: 270-degree
• Pan/Tilt Invert Mode
• 4, Built-In, Pan/Tilt Target Modes
•


What's in the Box?

• (1) Focus Spot 2X Moving Head Fixture
