Overview

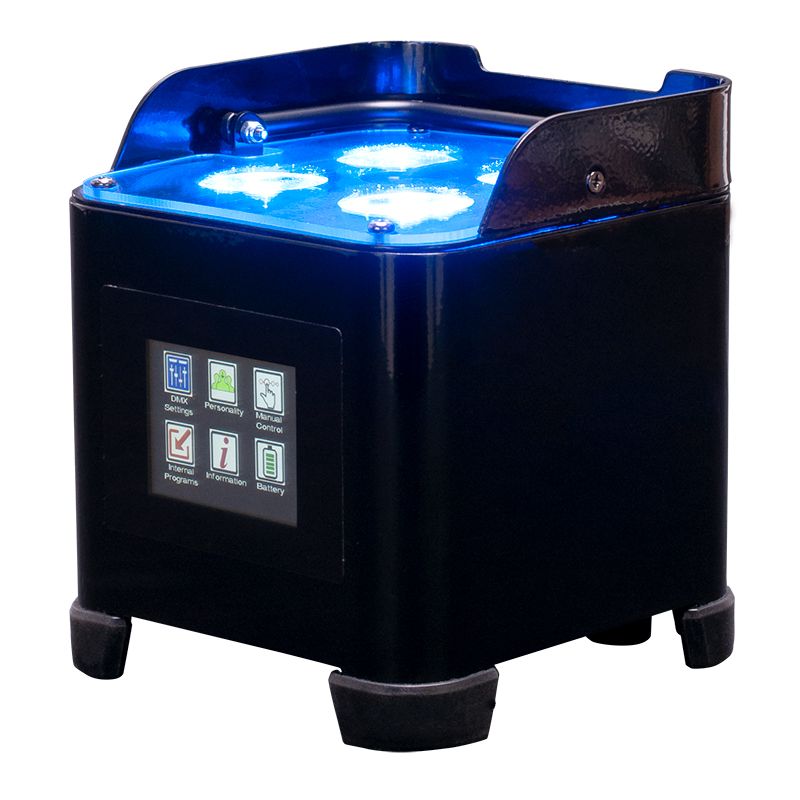

The ADJ Element ST HEX is the latest addition to ADJ's Element Serie of battery powered wireless LED up-lighters. Building on the success of ADJ's popular Element Hex, the new model features an extremely compact design as well as a full-color touch screen display for extremely easy setup and DMX addressing. Utilizing the power of 4 x 6-Watt RGBAW+UV LEDs to generate a powerful wash of color with a 20-degree beam angle, the fixture features a built-in rechargeable battery that offers up to 8 hours of continuous operation as well as ADJ's WiFLY EXR wireless DMX connectivity.  Cleverly designed with a built-in variable-angle kickstand and convenient carry handle, the unit is ideal for production companies, decor specialists and mobile entertainers.

Features

• Menu selectable languages: English or Spanish
• Built-in tilt adjustment leg to angle figure while it's on the floor
• DMX menu touch screen display
• Built-in WiFLY EXR wireless DMX: Up to 2,500 feet (760M) when used with ADJ's WiFLY EXR Battery Transceiver
• 63 built-in Color Macros
• Variable RGBAW+UV color mixing offers a smooth, seemingly unlimited color palette-Great for Stage or Wall Washing!
• LED pulse and strobe effect (0.1 Hz - 11 Hz)
• Flicker Free Operation
• Electronic Dimming: 0 - 100% with 5 dimming curves
• Run all night - No duty cycle
• Energy Save Mode to preserve battery life
• Carry handle and snoot to hide handle and LED lenses

Specifications

Optical

• 4 x 6-Watt RGBAW+UV LEDs (6-in-1 - Red, Green, Blue, Amber, White & UV)
• Life expectancy: rated at 50,000 hrs
• LUX: >412 @ 3M (9.8ft)
• Beam angle: 20-degree

Connection

• 12.6 VDC Power Input

Control

• Control protocol: WiFLY EXR wireless DMX
• 5 DMX Channel modes: 6, 7, 8, 11 & 12
• WiFLY EXR Wireless DMX built-in
• UC-IR infrared wireless remote (included)
• 5 Operational modes: RGBAW+UV Dimmer Mode; Sound Active Mode; internal program mode; color macro mode; and DMX controlled
• USB service port

Battery

• Battery Type: Fixed Lithium Battery
• Battery Energy: 73.26WH (Watt Hours)
• Battery Weight: 0.42 kg
• Battery Voltage: 11.1 V
• Battery Capacity: 6.6AH
• Total Lithium Ion Cells: 9 pieces
• Battery Wrap Material: PVC sleeving + highland barley paper
• Battery Charge Time: 5 hours (with POWER switch On)
• Battery Life (Full Charge): 8 hours (Full On): Up to 12 hours (Static Colors on Chase Mode)

Electrical

• Power Draw Total (All LED's @ Full On): 45W, 0.5A @ 120V/60Hz, 42W, 0.2A @ 220V/50Hz
• Multi-voltage operation: AC 100-240V, 50/60Hz

What's in the Box?

• (1) American DJ Element ST HEX LED Up-Light
• (1) Wireless Remote Control
