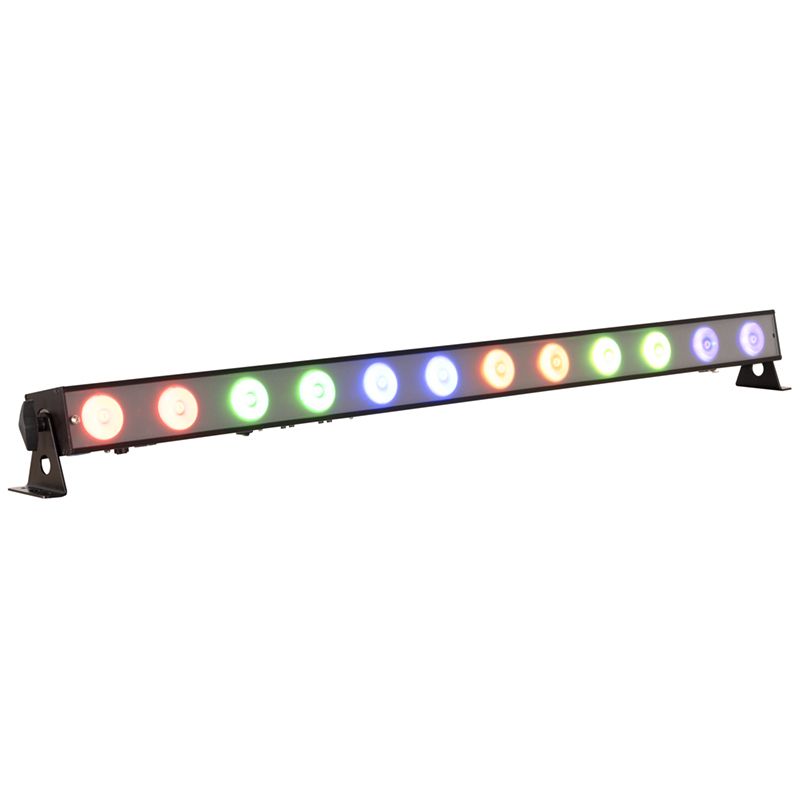

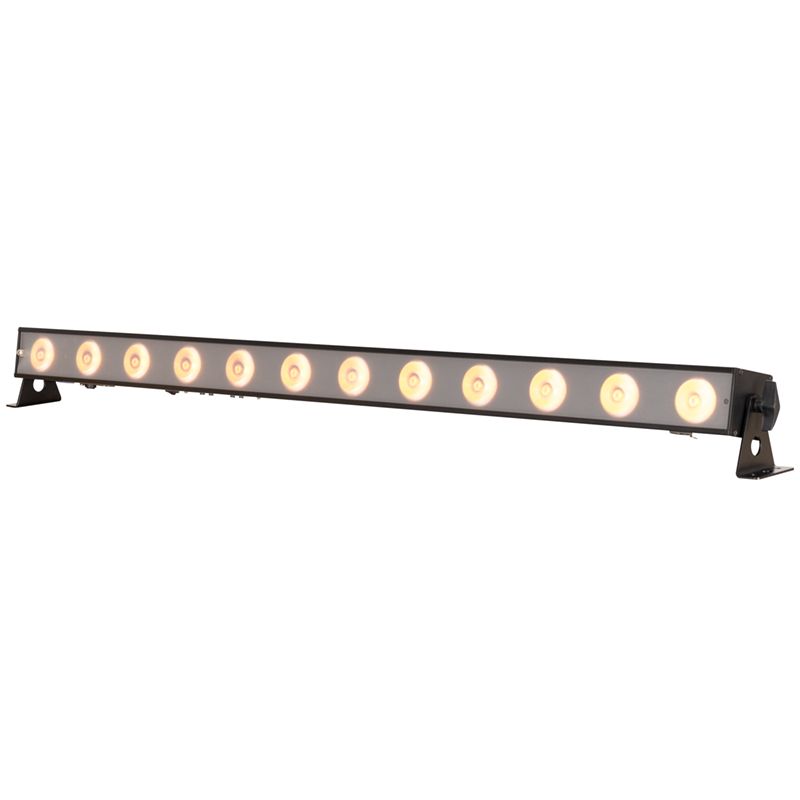

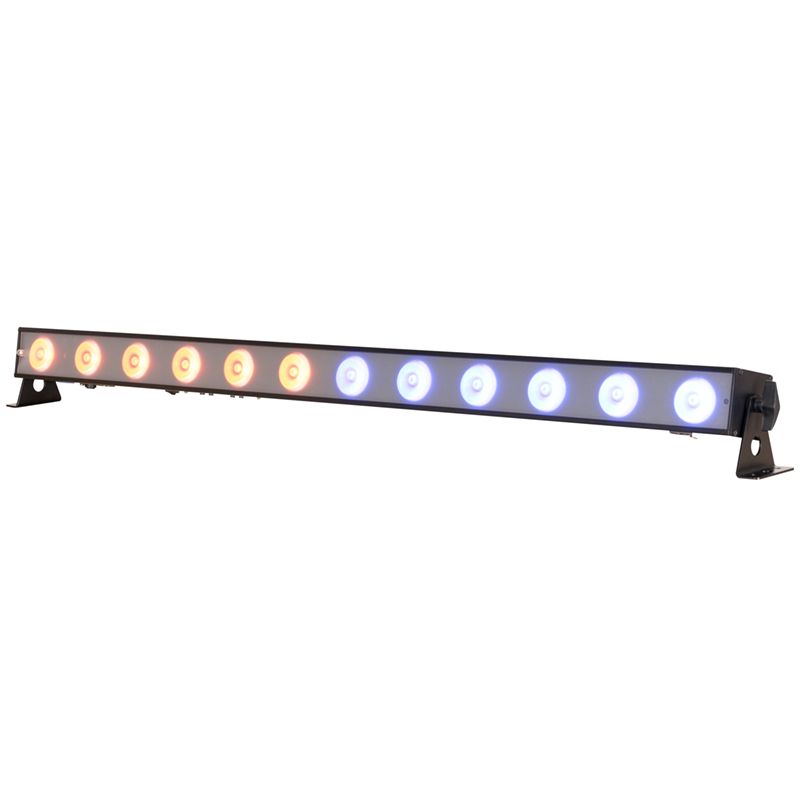

ADJ UBL12HB Battery-Operated 1-Meter Linear LED Wash Luminaire Lighting Fixture

Overview

Building on the success of the UBL12H, the UBL12HB redefines event lighting as a 1-meter, battery-powered linear LED wash luminaire. Designed for professional use, this lime-infused HEX LED fixture sets a new standard in performance. Powered by twelve ultra-bright 20-Watt HEX LEDs (Red, Green, Blue, Amber, Lime, and UV), it is a versatile powerhouse that delivers seamless and precise color blending.

This fixture excels with its high CRI output and adjustable linear color temperature range from 2,300K to 9,900K. The inclusion of the lime chip enhances color accuracy, achieving a CRI exceeding 90 for an exceptional visual experience. It empowers lighting designers and event producers to create striking displays on walls, floors, and ceilings.

The UBL12HB features a 17° beam angle, an 85.5mm pixel pitch, and smooth RGBAL+UV color mixing. Its innovative Horizontal Magnetic Alignment ensures seamless color consistency across multiple fixtures. Control is intuitive with an OLED display and 4-button interface, supporting linear color temperature adjustment and compatibility with the ADJ UC-IR24 remote. The fixture offers seven DMX channel modes and five operational modes, including Auto Run, Program Mode, Sound Trigger, RGBAL+UV Manual, and DMX-512 Mode. It is also RDM compatible.

With advanced features such as a 1.9kHz LED refresh rate, 64 built-in color macros, and selectable dimming modes and curves, the UBL12HB offers exceptional versatility. It supports DMX daisy-chaining for up to 17 units (120V) or 32 units (230V). Certified for safety and reliability, the UBL12HB is cETLus (pending), CE, and FCC compliant, with an IP20 rating.

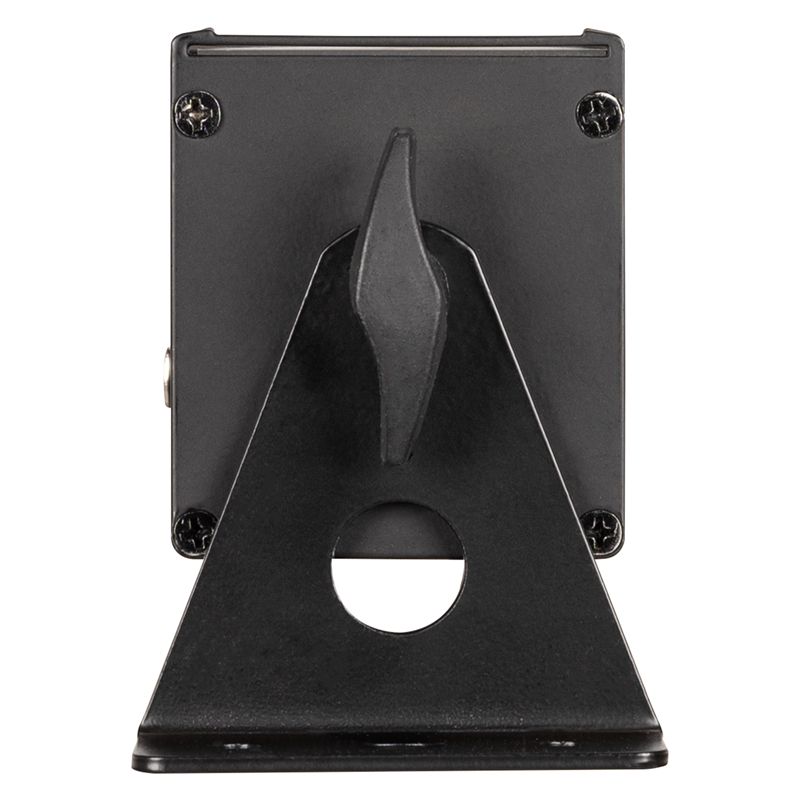

The UBL12HB includes an indoor locking power cord, UC-IR24 remote, and a 20° diffusion filter. Expand its capabilities with the optional UBL912 linear diffusion lens kit (sold separately), which broadens the beam angle to 1x40 degrees. Whether mounted on the ground or truss with the included brackets, the UBL12HB delivers innovation and versatility for unforgettable lighting displays.

 Features

• Linear Color Temperature Control (2,300K to 9,900K)
• Smooth RGBAL+UV color mixing
• Horizontal Magnetic Alignment feature (Built-In)
• Aria X2 Management System
• Includes UC-IR24 remote. Operates at a distance of up to 32.8 feet (10 meters)
• RDM and RDM Net Ready
