Overview

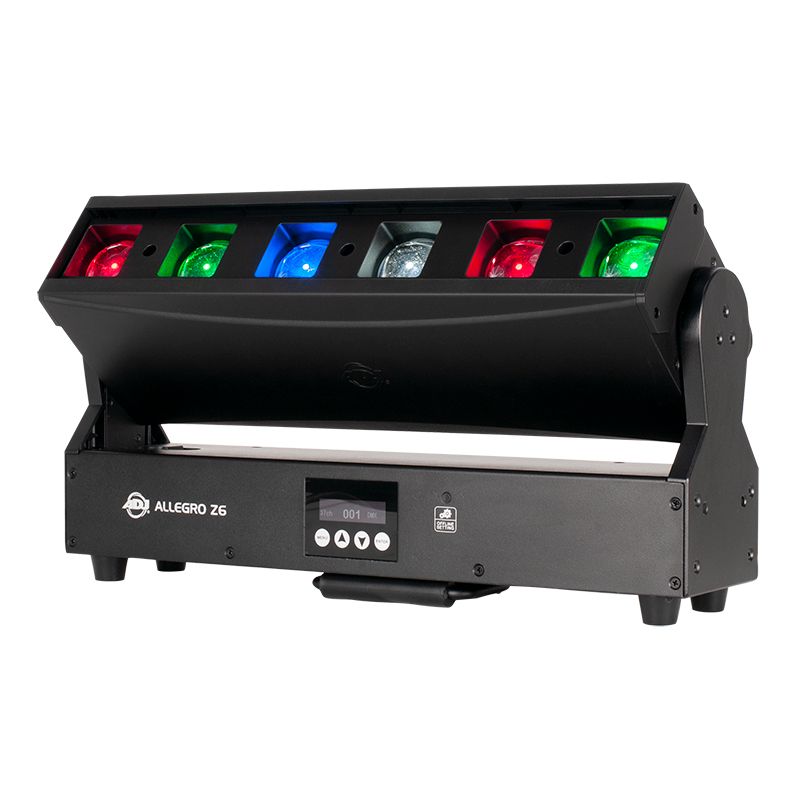

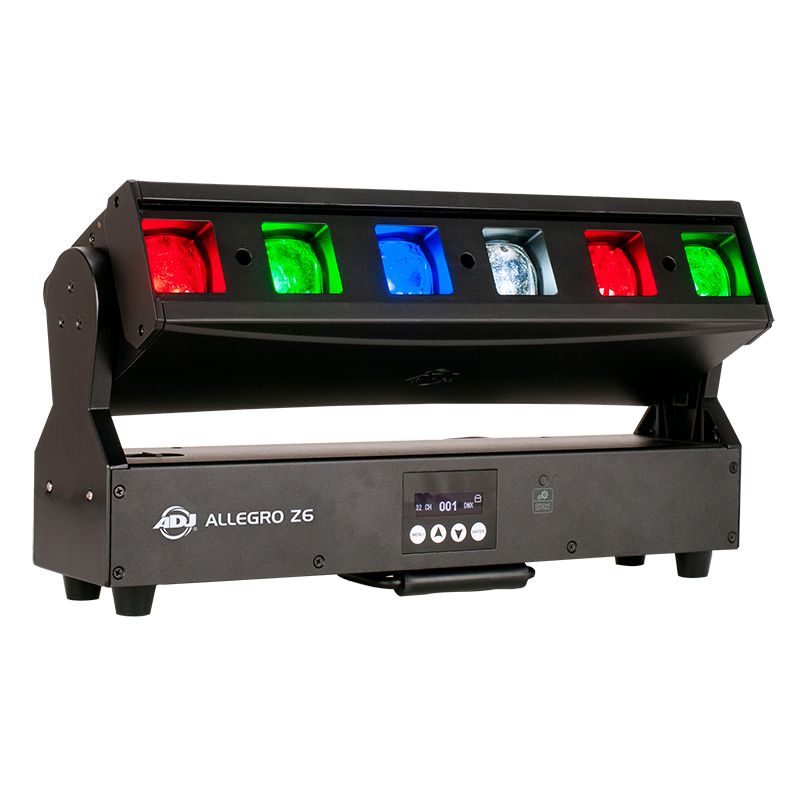

Quick moving linear fixture with 6 lenses with individual color control, motorized zoom (4 ~ 32-degrees), motorized tilt and strobe and pulse effects.

Features

• Motorized zoom
• Tilt lock for stable transporting
• USB Input for Updating Fixture Firmware
• Folding carryig handle
• Rubber feet so fixture can be set on the ground
• All metal construction with black housing

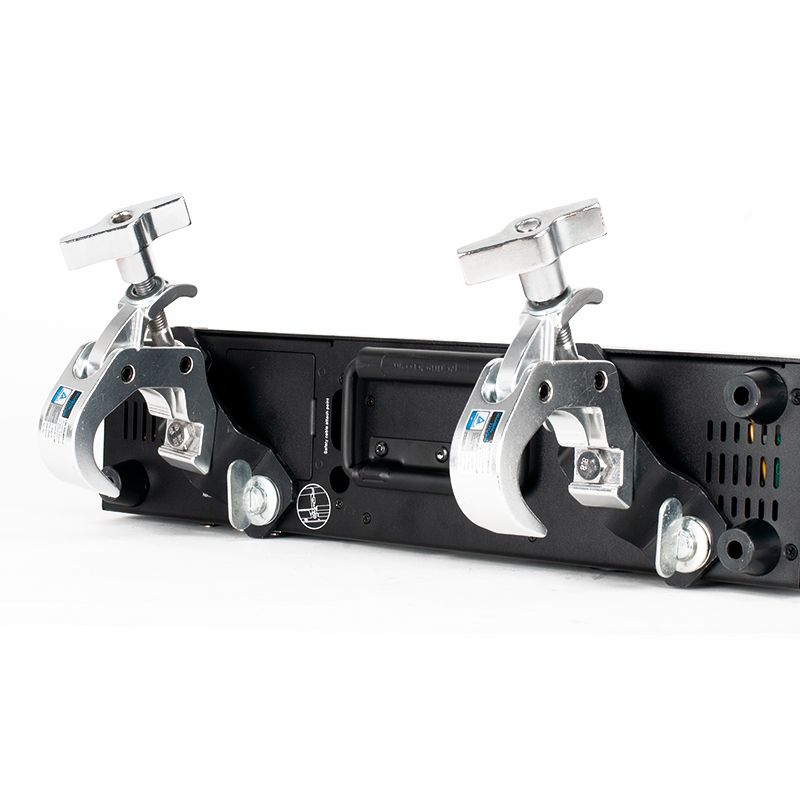

• Includes 2 Omega brackets for mounting to truss
• Flicker free, 1200 Hz PWM frequency
• Linear variable white temperature control

Specifications

Light Source

• LED: 6x 40W QUAD (4-in-1) RGBW LEDs
• Motorized Zoom: 4° ~ 32°
• LUX: 47,000 @ 2M, Zoomed into 4°; 1,900 @ 2M, Zoomed out to 32°

Construction

• Display: OLED display with function buttons

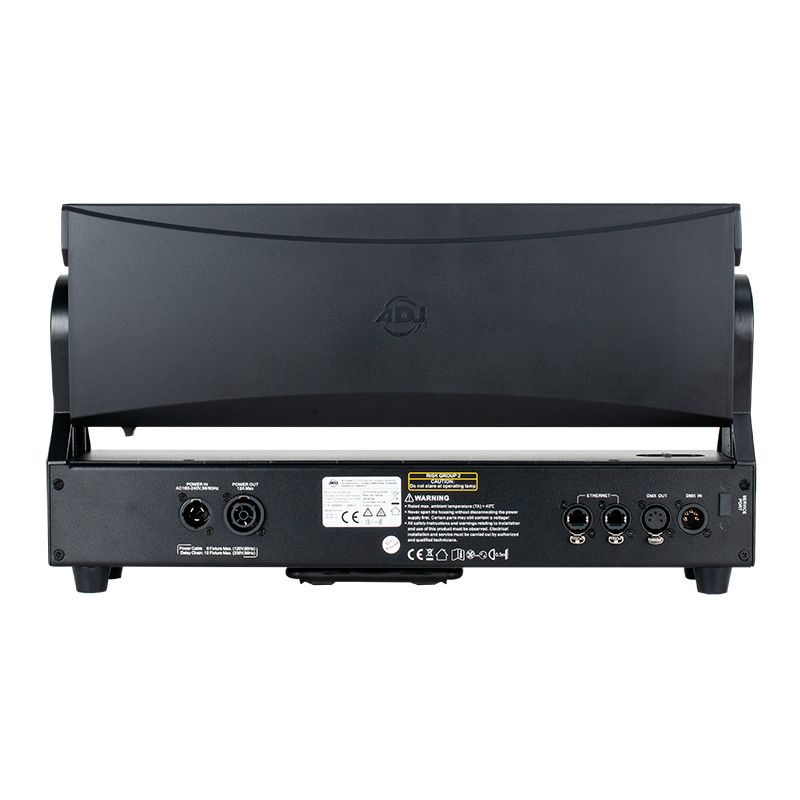

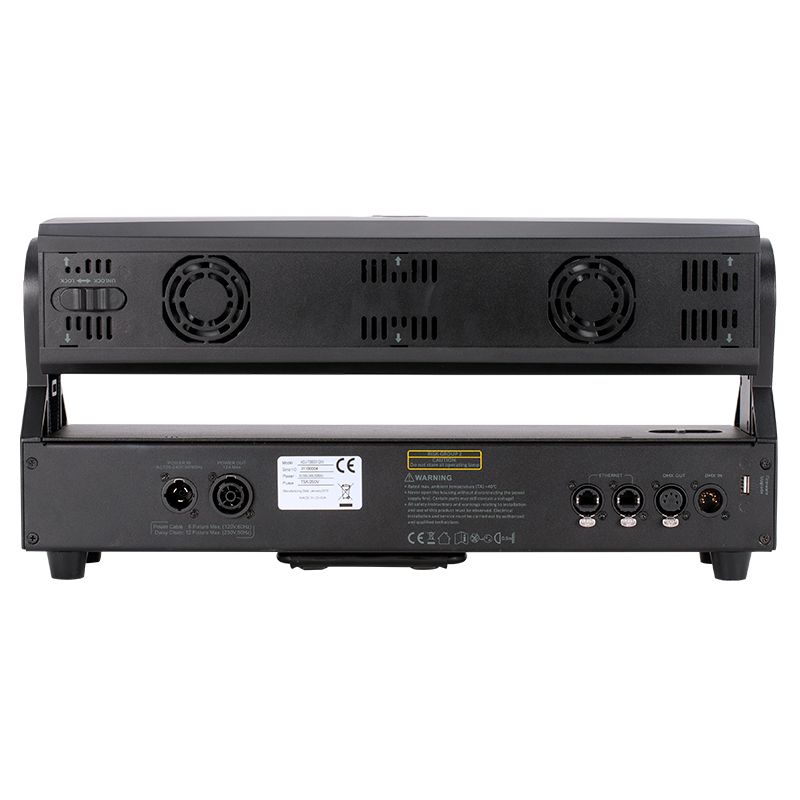

• 5-pin DMX In/Out for data linking
• RJ45 In/Out for Art-Net & Kling-Net control
• Locking power In/Out to daisy chain up to 6 fixtures (@120V), 11 fixtures (@230V)

Control

• Control Modes: DMX512, RDM (Remote Device Management), Art-Net & Kling-Net
• Multipole DMX channel modes
• Tilt & Tilt Fine: 220°
• Strobe & Pulse Effects
• 6 individually controlled Pixels
• 0-100% Dimming + 16-bit Fine Dimming
• 6 Preset Dim Curve Modes plus Dim Speed contrl
• With Wired Digital Communication Network

Electrical

• Power voltage: AC100-240V/50/60Hz (Multi-voltage)
• Power consumption: 240W max

Dimensions & Weight

• Dimensions (LxWxH): 19.6" x 4.4" x 10.9"/500 x 113 x 278 mm
• Weight: 22 lbs/10kg

What's in the Box?

• (1) ADJ Allegro Z6 Linear Lighting Fixture
• (2) Omega Brackets
• (1) Locking power cord
