Description

Overview

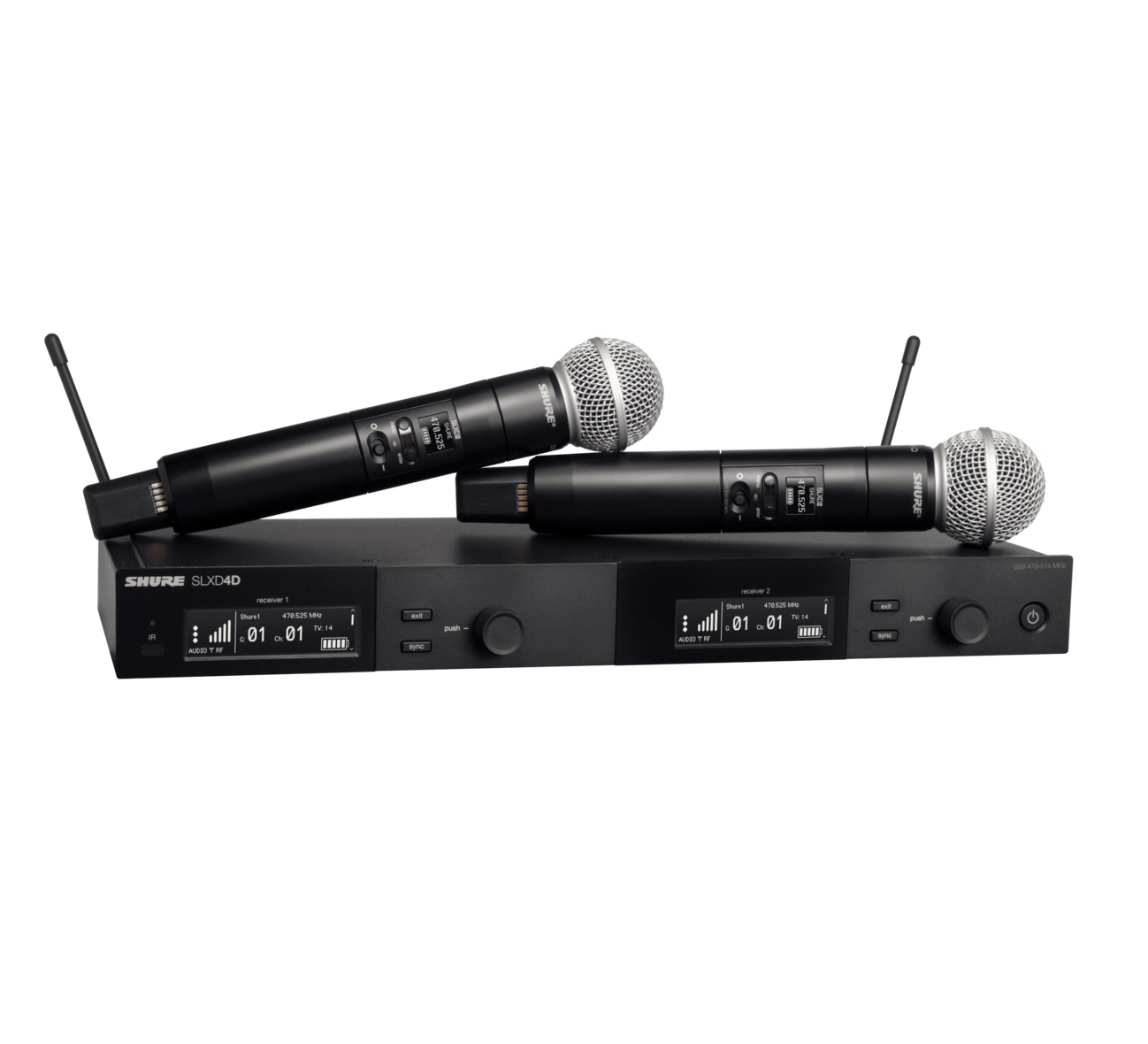

The Shure SLXD24D/SM58 offers two presenters or performers a dual-channel wireless handheld microphone system that’s dependable, easy to set up, and features crystal-clear, digital sound quality. Built around a rugged, dual-channel, single-rackspace receiver with removable antennas, the system is ideally suited for portable rigs and long-term installations in small- to medium-sized venues, event spaces, conference rooms, houses of worship, and education facilities.

The SLX-D operates in the UHF band to transmit high-quality, 24-bit digital audio with over 120 dB of dynamic range for crisp, detailed sound. It utilizes Digital Predictive Switching Diversity to protect the transmission from interference and deliver a solid, reliable RF signal without dropouts.

The SLXD24D/SM58 includes two SLXD2 handheld transmitters, each featuring an interchangeable microphone capsule design and equipped with the SM58 dynamic cardioid capsule, an industry standard for vocalists and presenters. The lightweight metal transmitters both feature a selectable 1/10mW RF power output and a transmission range up to 330′. Power is supplied by two AA batteries or an SB903 rechargeable battery (available separately) for up to 8 hours.

The all-metal rackmount SLXD4D receiver features an intuitive LCD interface with meters for RF, battery status, and audio output. It also offers 60 dB of gain control, and both mic/line XLR and 1/4″ instrument outputs for each channel. Additional features include automatic frequency scanning and IR sync to easily link the transmitter and receiver to the same frequency.

With up to 32 mic channels available at the same time, the SLX-D is ready to expand as your needs grow. What’s more, setting up multiple systems is made fast and easy via the Ethernet port, which links the them together for quick, coordinated frequency scans from a single receiver.

Features

• For Two Performers or Presenters
• 2 x SM58 Dynamic Cardioid Mic Capsules
• 2 x Handheld Transmitters
• Dual-Channel Digital-Diversity Receiver
• 1760 Auto-Scan Frequencies
• 1/10mW RF Power
• LCD Screens, Ethernet for Group Scans
• Interchangeable Mic Capsule Design
• Compatible with 8-Hr Rechargeable SB903
• Expandable to 32 Mic Channels/330′ Range

What’s In The Box?

• Shure SLXD24D/SM58 Dual-Channel Digital Wireless Handheld Microphone System with SM58 Capsules (G58: 470 to 514 MHz)
• Shure SLXD4D Dual Channel Digital Wireless Receiver G58 Band
• 2x Shure SLXD2/SM58 Digital Wireless Handheld Mic Transmitter w/ SM58 Capsule G58 Band
• 2 x Wireless Microphone Clips
• Rackmounting Kit
• 2 x 1/4 Wave Antennas
• Shure PS43US 15-VDC Power Supply for Shure Wireless Receivers
• 4 x AA Batteries
• Limited 2-Year Warranty
