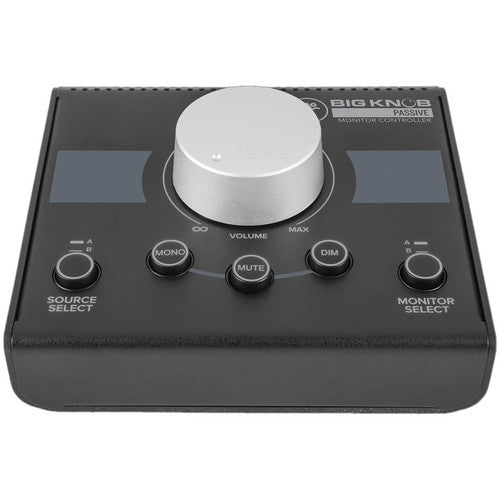

Authorized DealerMackie BIGKNOB-PASSIVE 2x2 Two Source Studio Monitor Controller
$69.99
Overview
The Big Knob Passive benefits from a proven, bestselling design to deliver professional level control, plus source & monitor selection for studios of any size. The passive audio path ensures pristine sonic integrity is maintained throughout your signal chain. More than just a level control solution, Big Knob Passive features the ability to choose between two sources and two monitor pairs. Ideal for simple level control at a home or project studio or for integration in a large studio or group of editing suites, Big Knob Passive is the "Built-Like-A-Tank," affordable monitoring control solution.
Features
- 2x2 Monitor Controller
- Two Sources and Two Monitor Pairs
- Classic Big Knob Volume Control
- Mono, Mute, and Dim Functions
- Pristine Audio Quality
- Passive Audio Path
- No Power Supply Required
- Sturdy Design
- Pro Tools | First and Waveform DAW
- Includes Plug-In Packages
Specifications
| Inputs | 4 x 1/4" TRS Balanced/Unbalanced Line Inputs1 x 1/8" / 3.5 mm TRS Unbalanced Stereo Input |
| Outputs | 4 x 1/4" TRS Balanced/Unbalanced Monitor Outputs |
| Mono/Mute/Dim | Yes |
| Frequency Response | 10 Hz to 30 kHz (±1 dB, 0 dBu Input) |
| THD + N | |
| Crosstalk | < -85 dB (0 dBu Input at 1 kHz, 20 Hz to 20 kHz) |
| Attenuation | -100 dB |
| Signal-to-Noise Ratio | < -100 dB |
| Maximum Input Level | +22 dBu |
| Maximum Output Level | +15 dBu |
| Power Requirements | None |
| Dimensions (W x D x H) | 5.6 x 5.4 x 3.1" / 14.2 x 13.7 x 7.9 cm |
| Weight | 2.2 lb / 1 kg |
