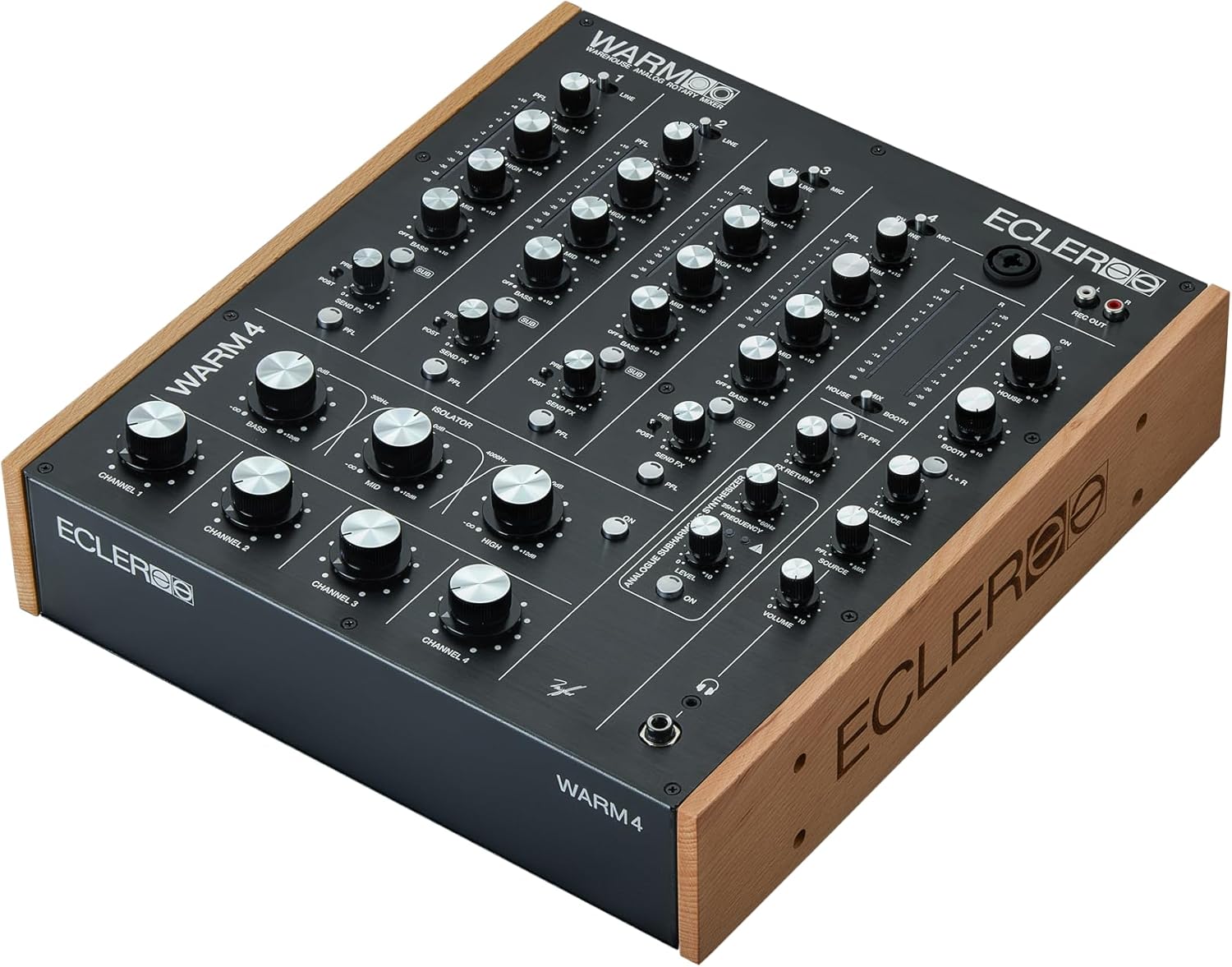

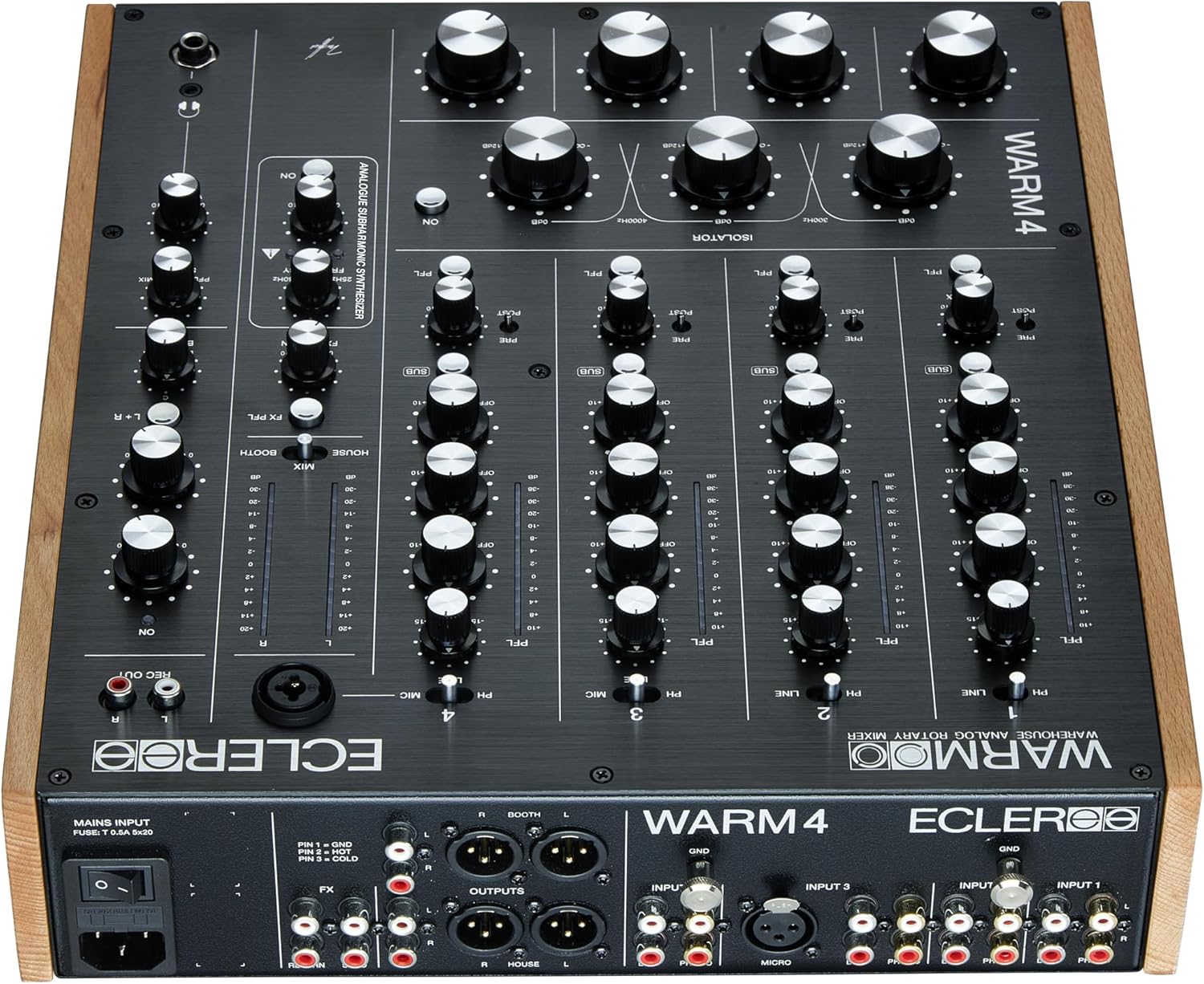

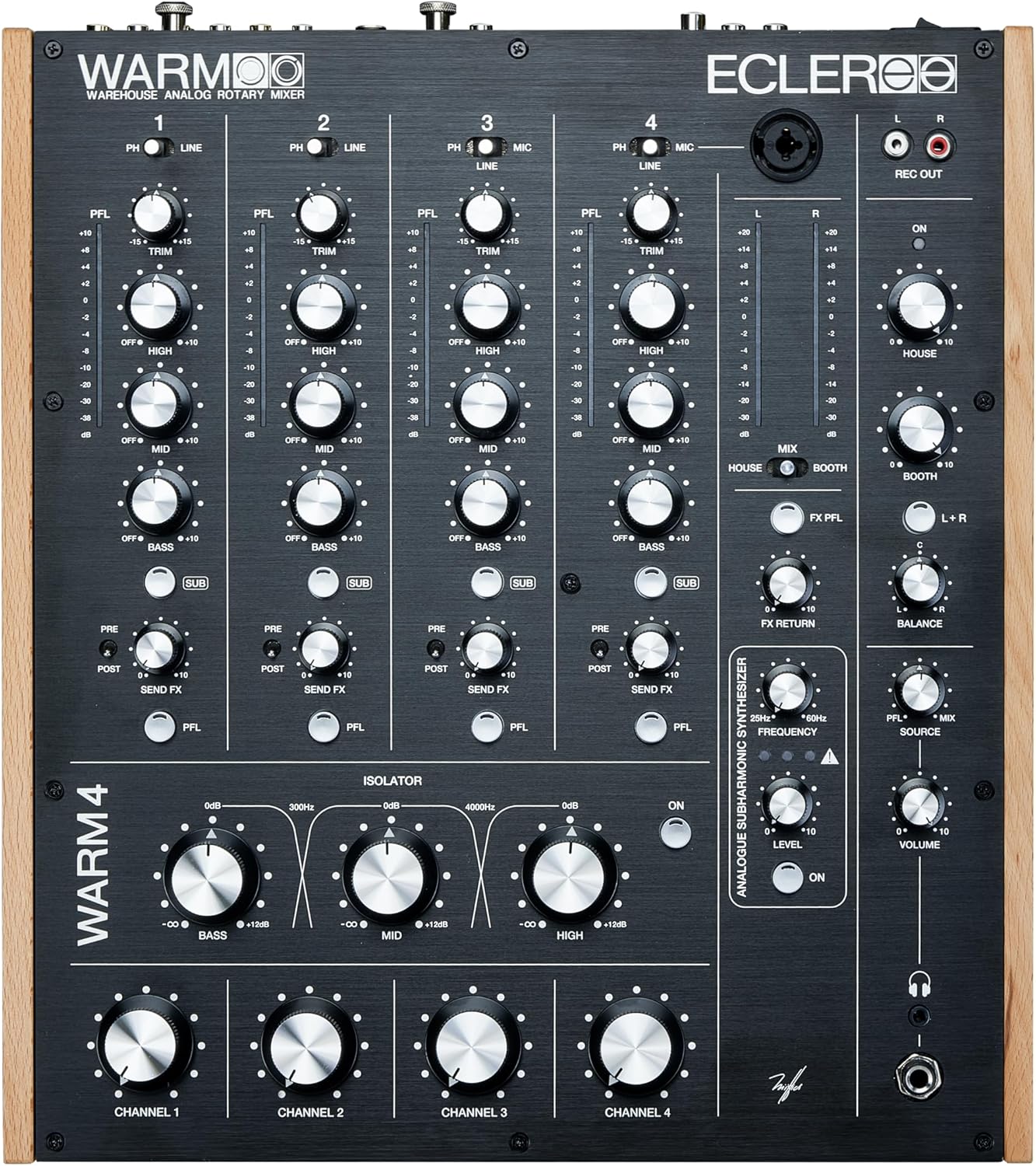

Ecler DJ AMS-WARM-4 Analogue Rotary Mixer Unit

Overview

WARM4 is a professional four channel analogue rotary DJ mixer, designed and manufactured by ECLER in Barcelona.Featuring 4 phono/line channels, 2 MIC inputs, classic sharp filters and a 4th order Isolator. WARM4 includes an unique feature, an Analogue Subharmonic Synthesizer selectable per channel, specially designed to generate and reinforce ultra-low frequencies.

 Features

• 4 Mixing channels
• 4 PHONO inputs
• 4 LINE inputs
• 2 MICRO inputs

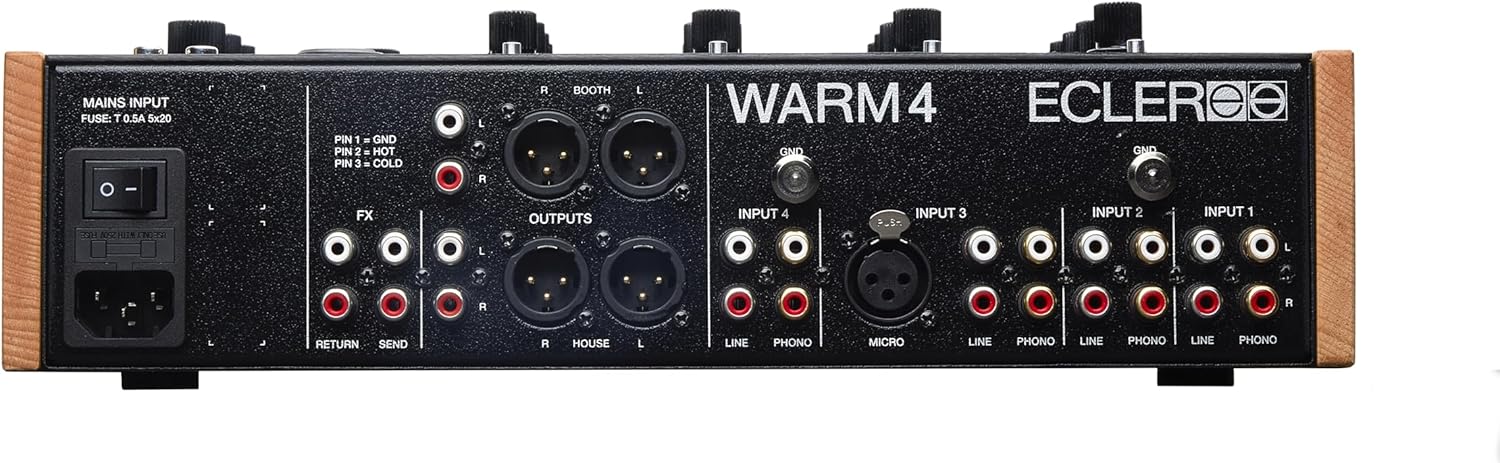

• Master Output on XLR and RCA connectors
• Booth Output on XLR and RCA connectors
• Headphone Monitor Output on 6.3mm J ack and 3.5mm mini-jack
• 3 band isolator full cut EQ
• 3 band isolator (300Hz and 4KHz, -∞ /+12dB, 4th order 24dB/oct )
• Analogue Subharmonic Synthesizer for sub-bass frequency reinforcement selectable per channel
• Maximum Output without distortion: 21dBV (23dBu)
• FX Send control and Pre/Post fader selector per channel
• FX Return control and PFL
• Alps metal shaft high quality potentiometers
• Mechanized from a solid block of aluminum knob, without visible screw. Ecler Unique design
• Wooden side panels included

What's In The Box?

• Ecler WARM4 Analogue Rotary Mixer Unit
• IEC Main Connector
• 8x RCA Protection Caps
• First Steps Guide
• Warranty card
