American DJ Saber Bar 6 6-Head Pinspot Lighting System
American DJ Authorized Dealer

American DJ Saber Bar 6 6-Head Pinspot Lighting System

$499.00

Overview

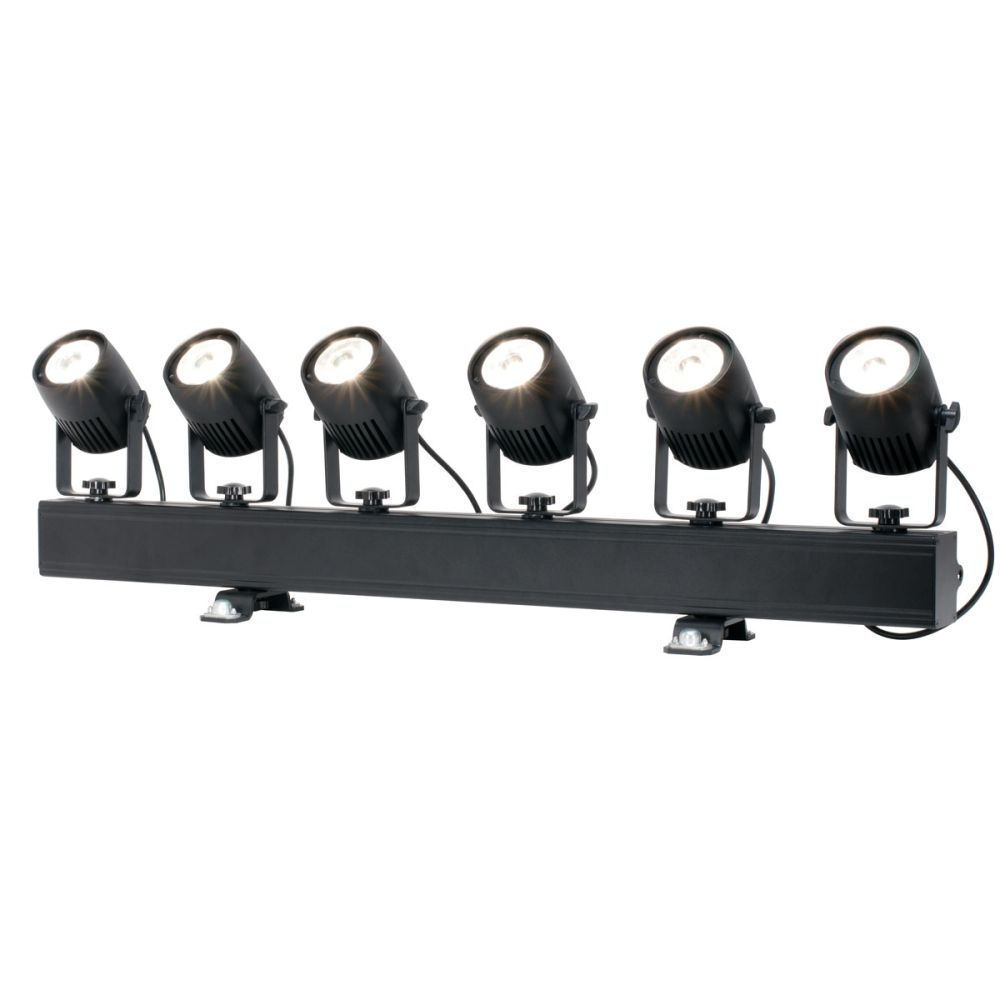

The Saber Bar 6 is a 6-head pinspot lighting system mounted on a 1-meter linear base with built-in power and DMX connections. Each pinspot is similar to the Saber Spot WW with a q5 W Warm White LED (3100K) and an ACL lens that produces a razor sharp 5-degree beam. Each fixture's X/Y axis may be individually adjusted manually for precision angling of the beams. The fixture includes a 10-degree and 45-degree lens kits so that designers can change the beam angle depending on the application. There are two heavy duty adjustable brackets to mount the fixture to a ceiling or trus.


The rear panel features a display with function buttons, 3-pin and 5-pin DMX In/Out to link data and power locking In/Out connections to daisy chain power. There are multiple DMX channel modes to choose from, built-in programs and 6 dimming curve modes. The Saber Bar 6 is a ideal for performance stages, installations, table spotting and lighting in retail stores.


Features

  • All metal construction with black housing
  • ACL lens for razor sharp beams
  • Includes heavy duty adjustable brackets for hanging
  • Individually adjust X/Y axis of each fixture manually
  •

Specifications

Light Source

  • LED: 6x 15W Warm White LEDs (50,000 hr.)
  • Color Temperature: 3100K
  • CRI: 96
  • Beam Angle: 5-degrees (Includes 10-degree and 45-degree lens kits)

Construction

  • Display with function buttons
  • Data In/Out: 3-pin and 5-pin DMX In/Out to link data
  • Power locking In/Out connections to daisy chain power
  • Daisy chain up to 11 fixtures @ 120V; 12 fixtures @ 240V

Control

  • Multiple DMX channel mode
  • Control Modes: DMX512, RDM (Remote Device Management)
  • Built-in internal programs
  • 0-100% Dimming + smooth 16-bit fine dimming
  • 6 Dimming Curve Modes
  • Adjustable LED refresh rate
  • Strobe & Pulse effects
  • With Wired Digital Communication Network

Electrical

  • Power voltage: AC100-240V, 50/60Hz (Multi-voltage)
  • Power consumption: 85W max

What's in the Box?

  • 1x ADJ Saber Bar 6
  • 1x Power Cable
  • 1x Safety Cable
  • 2x Omega Brackets
  • 6x 10-degree frost filters
  • 6x 45-degree frost filters
